Precision Roll-to-Roll Etching Service High-Speed Mass Production
What is Roll-to-Roll Etching?

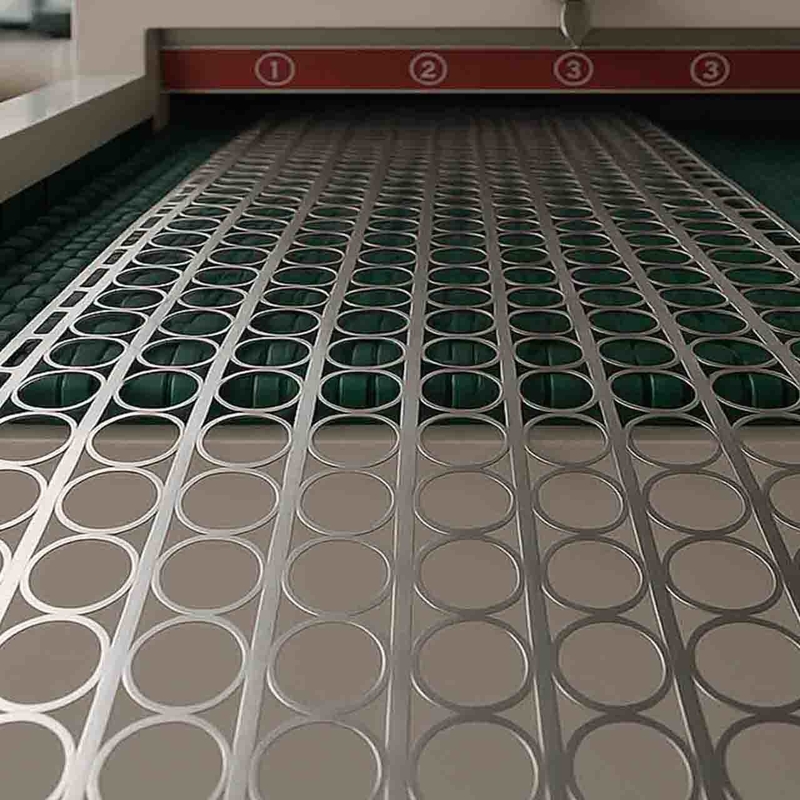

Roll-to-Roll etching is a continuous, high-speed manufacturing process where metal is etched from a roll of material, enabling efficient mass production of precision parts with consistent quality and reduced cost.
Roll-to-Roll Etching Overview

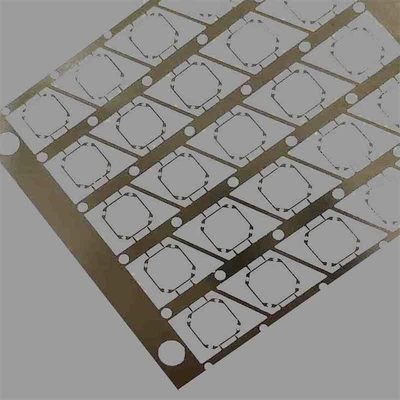

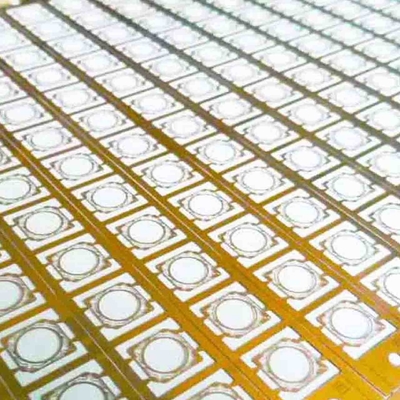

Xinhsen provides high-volume, precision roll-to-roll etching for flexible metal parts. Ideal for complex, fine-feature components produced efficiently in continuous rolls.
Roll-to-Roll Etching Key Feature
High precision: Micro-holes down to 0.03mm, line width up to 0.015mm
Wide material range: stainless steel, copper, brass, aluminum, nickel, etc.
Burr-free and stress-free: maintains material properties
Fast turnaround: from prototype to mass production
Consistent quality: etching uniformity within ±0.03mm
Roll-to-Roll Etching Specification
| Item | Capability |
|---|---|
| Materials | Stainless steel, Cu, Brass, Al, Ni, etc. |
| Thickness | 0.02mm – 3mm |
| Min. Hole Size | 0.03mm |
| Tolerance | ±0.01mm (standard) |
| Min. Line Width | 0.015mm |
Roll-to-Roll Application
Electronics: speaker meshes, shielding covers, flexible circuits
Medical: sensors, filters, electrode components
Automotive: precision filters, EMI shields
Industrial: various fine filters and conductive parts
Our Advantages
Quick response to urgent/large orders
13+ years precision etching expertise
One-stop solution from design to delivery
Ready to Elevate Your Production?
Contact us today for a free design consultation and instant quote. Let's transform your ideas into high-precision reality – faster, smarter, and at scale.
